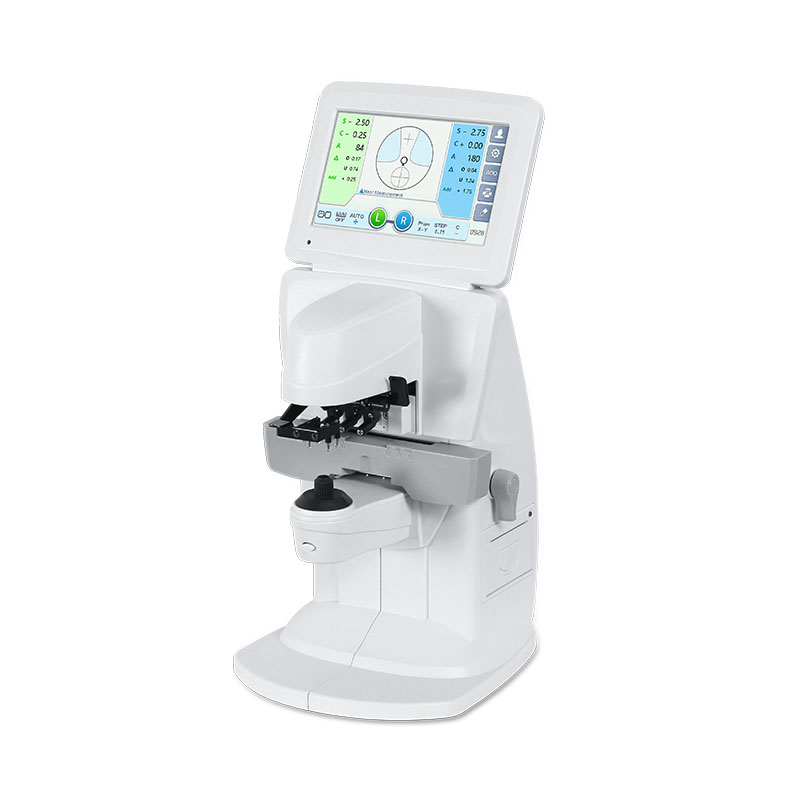

Auto lens meter TL6800C
Auto lens meter TL6800CFeatures:7.0 inch color LCD touch panel, with uv pd printer , green light , blue light .Hartmann sensor with 145measure points,progressive lens recognition more easy and measure···
Introduction
Auto lens meter TL6800C

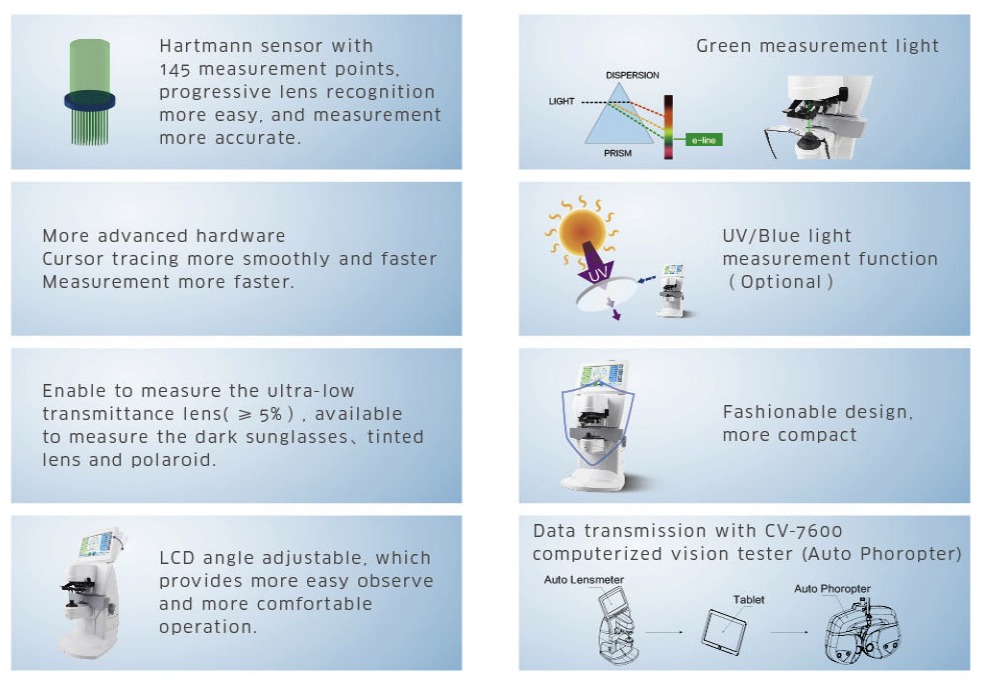

Features:
7.0 inch color LCD touch panel, with uv pd printer , green light , blue light .
Hartmann sensor with 145 measure points,progressive lens recognition more easy and measurement more accurate.
Green measurement light beam
More advanced hardware, Cursor tracing more somoothly and faster. Measurment more faster .
UV/Blue light measurement function
Enable to measure the ultra-low transmittance lens ≥5%, available to measure the dark sunglasses tinted lens and polaroid
Fashional design more compact
LCD angle adjustable , which provides more easy observe and more comfortable operation
Data transmission with CV7600 Auto phoropter .
| SPHERE | -25.00D-+25.OOD(step:0.01/0.06/0.12/0.25D) |
| Contact lens | -25.00D-+25. ODD (BC=6.00-9.00) (0.01D/0.12D/0.25DSTEPS) |
| CYLINDER | 0.00D-±10.00D(-,MIX,+} (0.01D/0.12D/0.25DSTEPS) |
| AXIS | 0°-180°(1°STEPS) |
| ADD | 0.00D-±10.00D (Add and Ad2)(Step:0.01/0.06/0.12/0.25D) 0.00D-±10.00D (Add and Ad2) |
| PRISM | 0.00Δ-20.00Δ (horizantal,vertical) X-Y,P-B (0.01/0.06/0.12/0.25DSTEPS) |
| PD measuring range | 42-82mm,Single vision PD , prigressive lens far vision PD |
| Wavelength/measuring point | 525 nm(Green) /145 within nosepiece |
| Diameter for contact lens | Φ5MM |
| UV | >100% (±15.00D~±25.00D, >20%) |
| Display | 7"color and touch screen (800*480) |
| Printer | Thermal Printer |
| DATD INTERFAGE | RS-232/LAN/USB |
| Power supply | AC100(±10%) -240(±10%)V 50/60HZ 40VA |
| Dimensions | 203(W) x 233(D)x471(D)MM |
| Weight | 4.5 KG |
Photos
